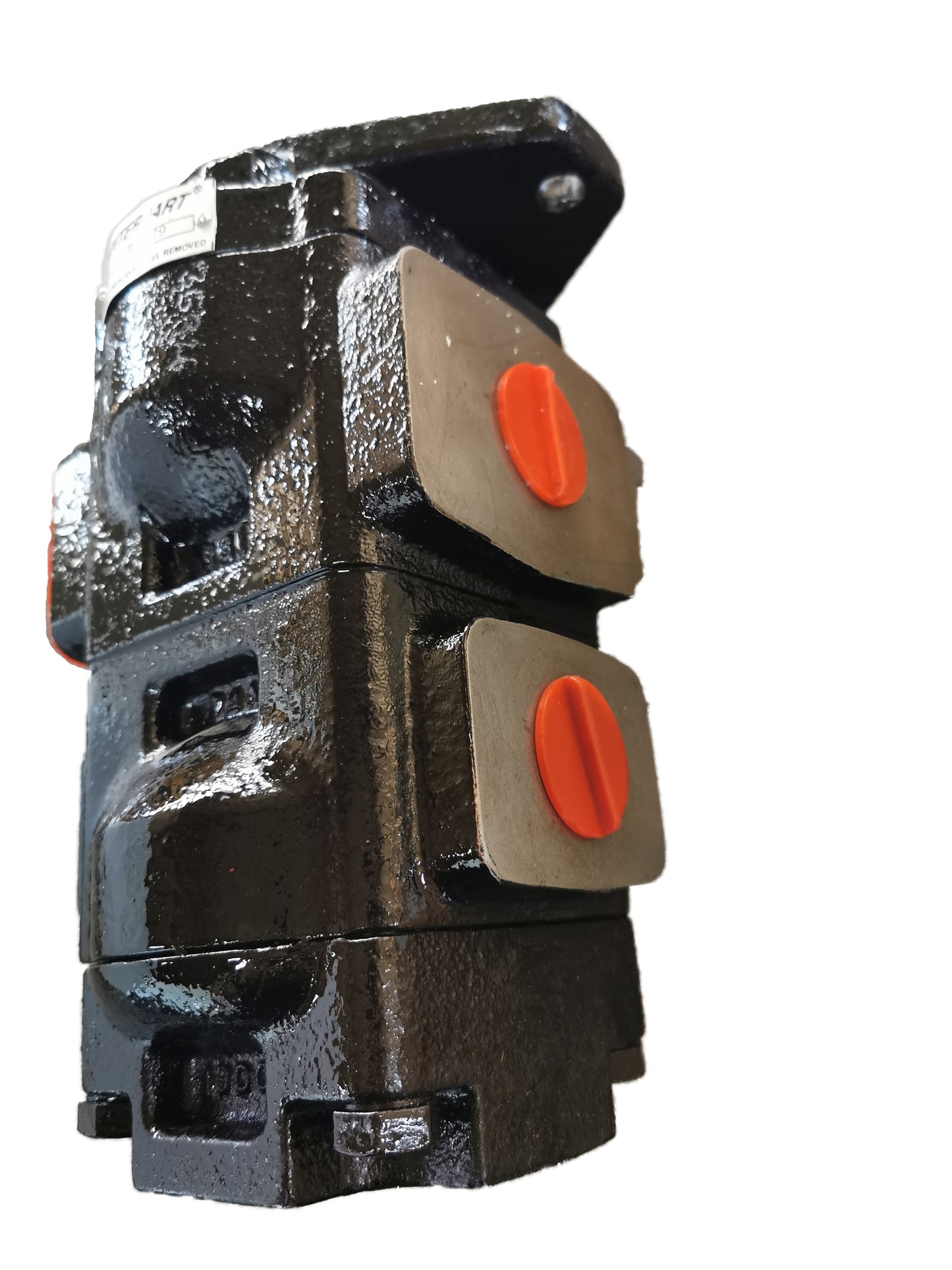

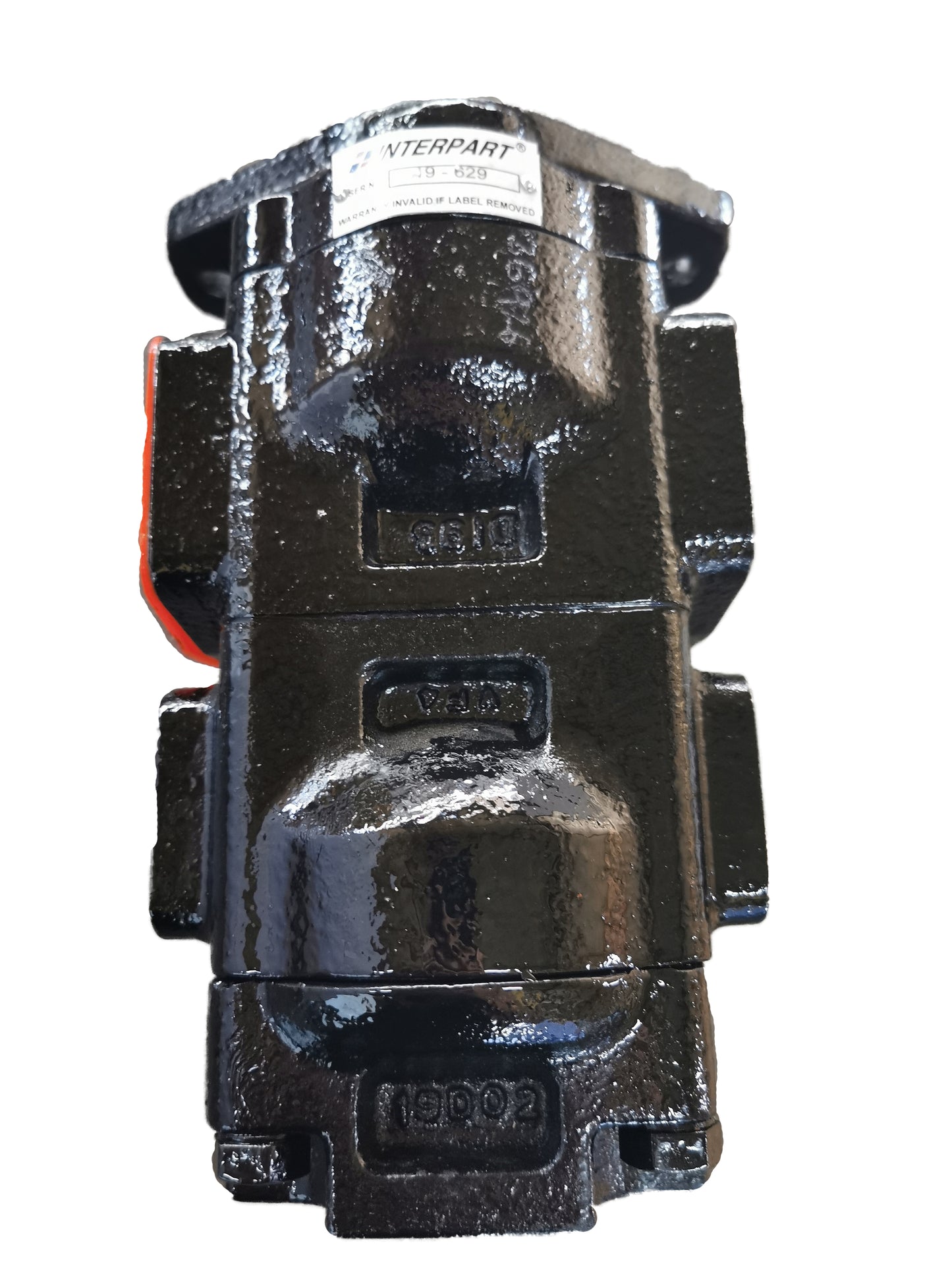

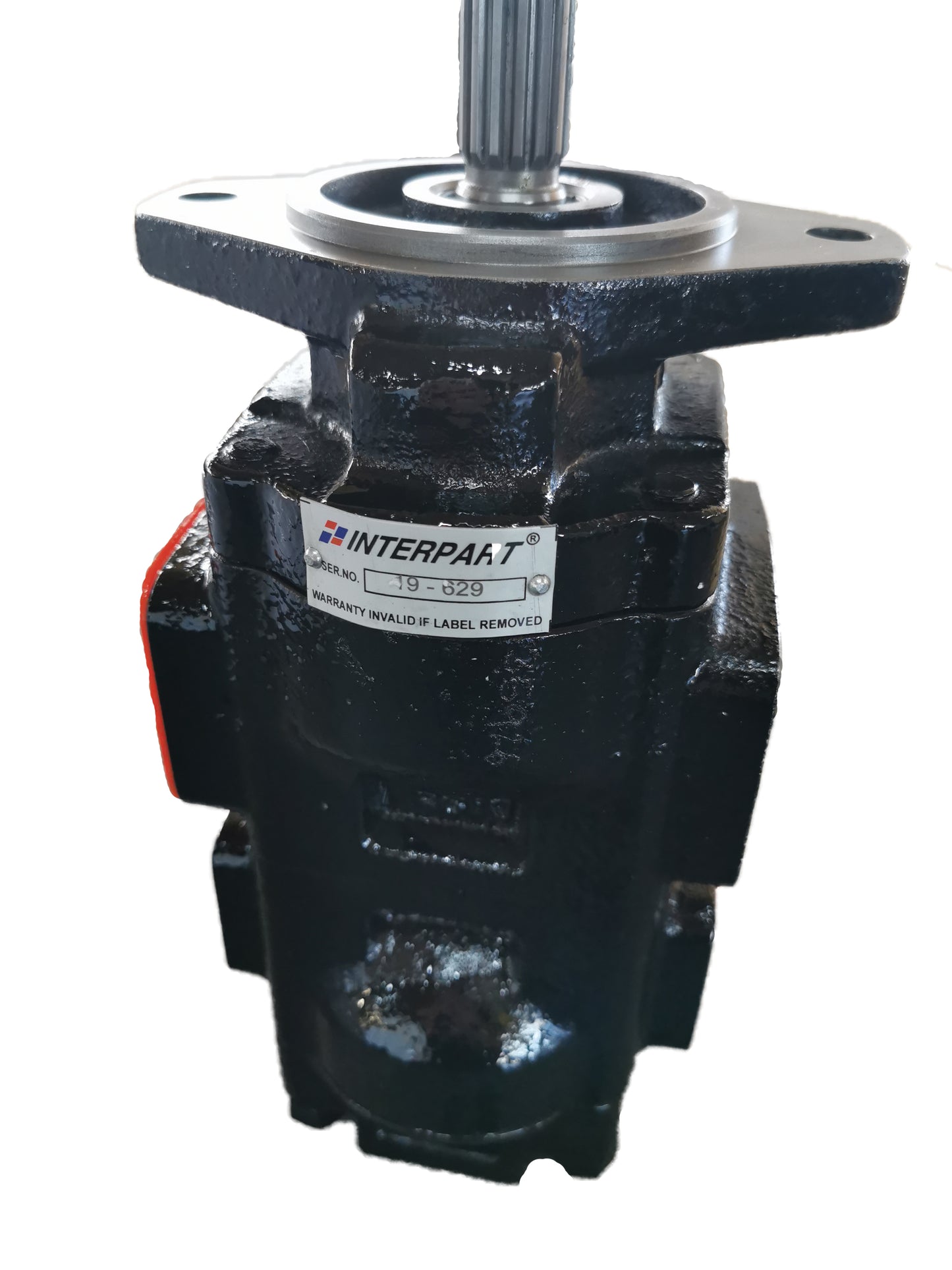

20/925338 - Jcb 3CX Twin Hydraulic Pump

20/925338 - Jcb 3CX Twin Hydraulic Pump


JCB 3CX ULTRA TWIN HYDRAULIC GEAR PUMP (Genuine Parker same as JCB unit) Rotation-Clockwise (looking from shaft end) 1” Diameter 15 tooth SAE spline16/32 Pitch SAE B 2 Hole mounting flange Front pump displacement 33 cc/rev (33L/Min per 1000 rpm) Rear pump displacement 23 cc/rev (23L/Min per 1000 rpm) Single 2” SAE flange inlet Front pump outlet 1 1/16”-12 UNF threaded Rear pump outlet 7/8”-14 UNF threaded Maximum working pressure on front pump 250 bar Maximum working pressure on rear pump 275 bar Max. Input shaft torque 460 Nm Replaces the following JCB part numbers 20/925578332/F902820/925338 *Please note these are genuine Parker/Ultra pumps for JCB machines
